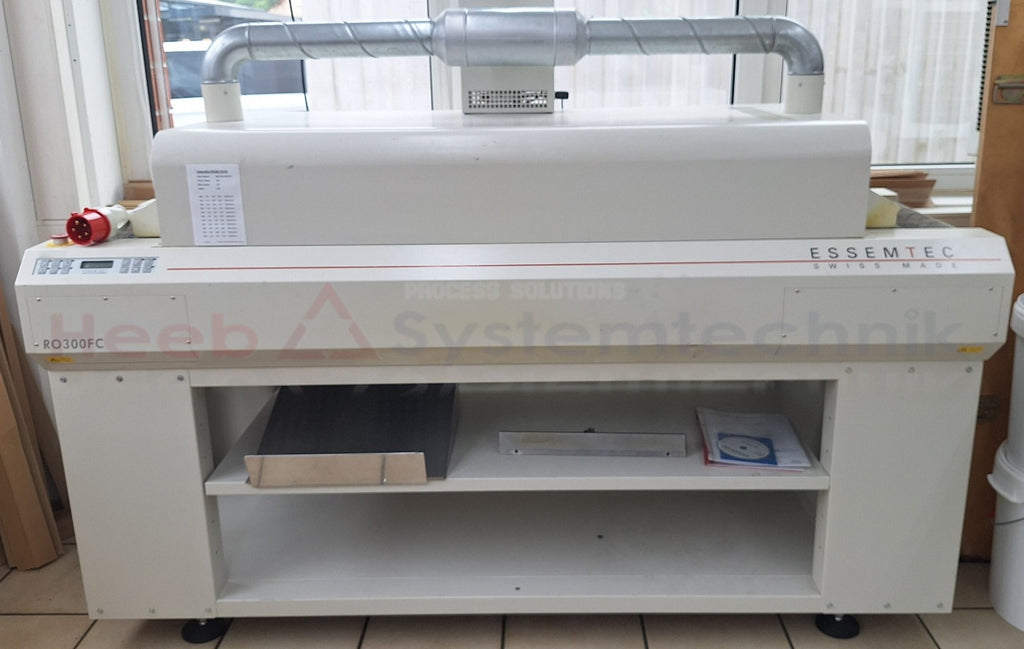

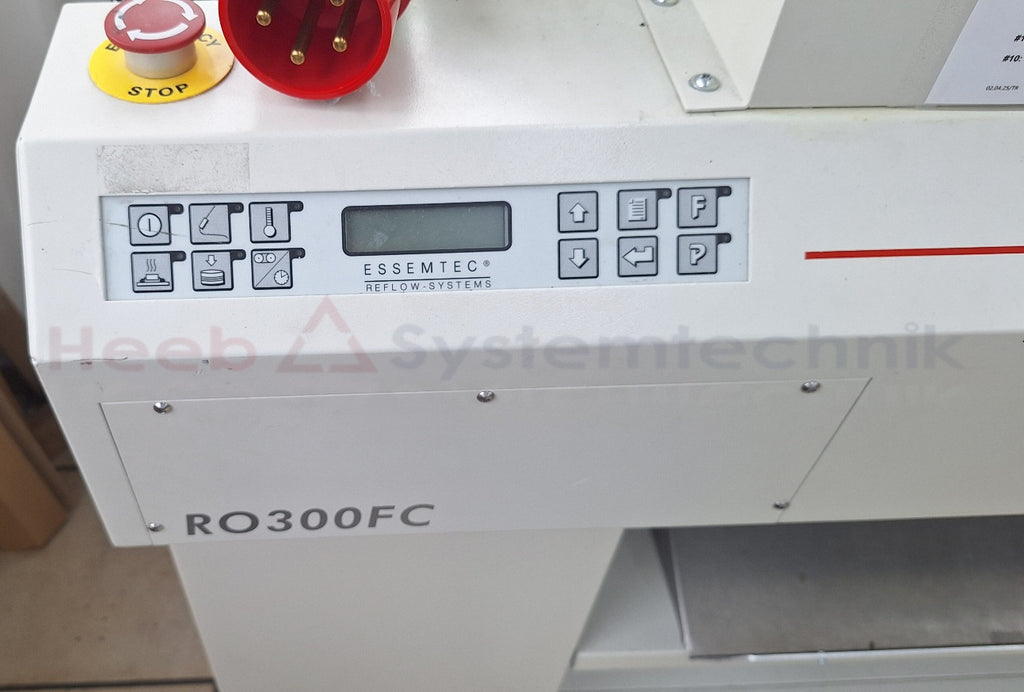

essemtec RO300FC reflow oven (2006)

Vintage 2006

• stand-alone system

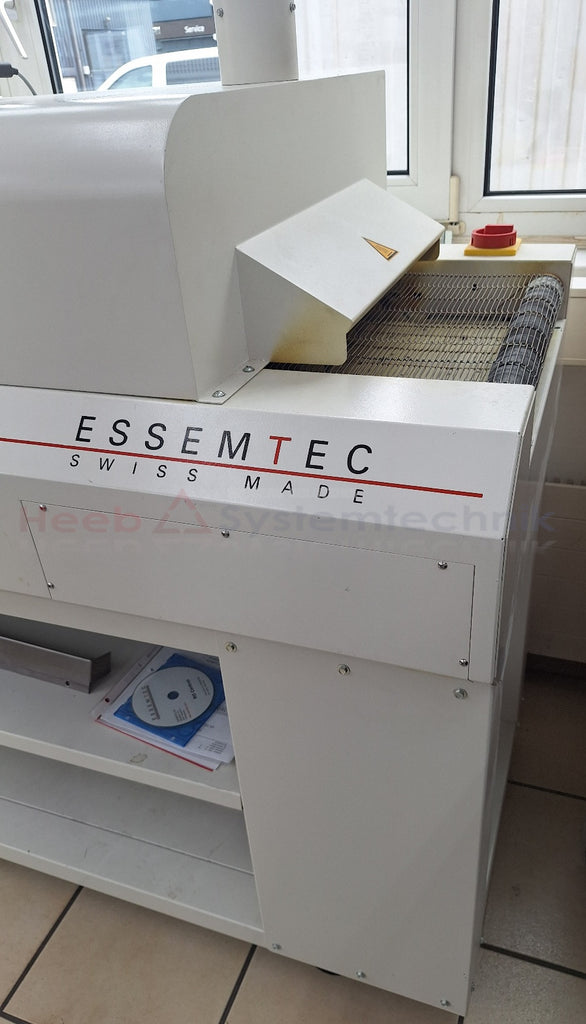

• transport: mesh belt
• transport speed programmable: 100 - 600 mm / minute
• 3 vertical heating zones (convection, 20-300°C)
• zone 1: entry heater + activation zone
• zone 2: activation zone for triggering the flux and heating the board
• zone 3: soldering zone
• length heating zones: each 380mm
• power consumption: heating phase (15 min.): 10 KW / hour; operation: 6.1 KW / hour
• small dimensions: 2,000x710x1,200 mm
• transport direction: left to right
